Ampoule Cartoning machine,Ampoule Cartoner of Automatic Packaging

Home » Products » Filling Sealing Machine » HDZ-100K Ampoule Cartoning Machine

Applications:
This HDZ-100K ampoule cartoning machine is mainly intended for automatic box packaging of injection in bubble cap board trays or similar to bubble cap boards. This cartoner can be connected to the front packaging to operate in order to increase use efficiency. It is fully automatic.

Main Characteristics:
1. Speed-regulated with variable frequency and adopt PLC automatic control system.
2. This ampoule cartoner adopts man-machine interface operating system with automatic indication of packaging speed and counting.
3. Box packaging of different specifications can be conducted on the same machine.
4. Automatically folded description sheets can be prepared and 3-line lot numbers in steel seal can be printed at the same time.
5. Switchover between manual and automatic operation.
6. Automatic inspection system for alarm and machine switch-off in case of non-conforming products.
7. This ampoule cartoning equipment is able to be connected with hot melt adhesive machine.

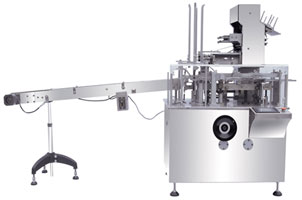

HDZ-100K Ampoule Cartoning Machine

Main Parameters: (Our company offer custom specification machines.)
Box speed: 50-100box/min
Box specifications (L×H×W): (110mm-160mm)×(12mm-35mm)×(70mm-135mm)
Manual specifications (mm): (110mm-160mm)×(90mm-250mm)
Power: 380V/50HZ
Total power: 1.1kw
Equipment size (mm) (L×H×W) (Not including conveyer belt): 1150mm×1120mm×1550mm
Compressed air: 0.6MPa
Air consumption: 30-90L/min
Weight: 850kg

Note:
Packaging material and the number of boxes can impact the box speed.

Boom Industry is a professional manufacturer and supplier of the ampoule cartoning machine in China. With 15 years experience of producing, selling and service in this cartoner, we have exported ampoule cartoning machines worldwide like the United States, Japan, Russia, Australia, New Zealand, Indonesia, Malaysia, India, Burma, Italy, France, Nigeria, Vietnam, Iran, Syria, Kazakhstan, Poland, Romania etc, more than 80 countries and regions, and gain great reputation among those customers. If you need ampoule cartoning machines, please contact us.
