Description:

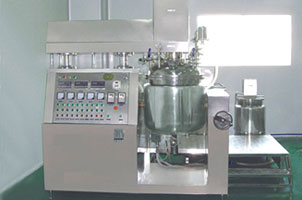

This vacuum homogenizing emulsifying machine is a kind of common packaging machinery.
The vacuum homogenizing machine, also known as vacuum homogenizer, and vacuum homogenisers in England, is special equipment for cosmetics, emulsions, medical ointment, and liquid cream. We also call it cosmetics homogenizer, ointment homogenizer as a result of applications.
The vacuum emulsifying machine (vacuum emulsifier), is a kind of machine integrating high speed emulsifying, mixing and blending ability. It is suitable for emulsification pharmaceuticals, cosmetic, fine chemical products, so we also call them ointment emulsifier, cosmetics emulsifier as a result of the applications.
Applications:
This vacuum homogenizer is widely used in manufacturing past-cream products of middle or high grade. It is suitable for heating, homogenizing and emulsifying materials. It is special equipment for emulsification cosmetics, emulsions, medical ointment, liquid cream, pharmaceuticals, fine chemical products and so on. While, operation platform oil phase boiler, control tank water phase, and. emulsification vessels are the main equipments for its performance.
Features:
1. The emulsified grain can get to precision of 2-5μm, for the high adherence(over 50000 C.P.S.) of sufficient mill and emulsification.
2. The vacuum material sucking device that adopted features in high frequency, and easy for operation.
3. This vacuum homogenzer is made of stainless steel and vacuum mixing which can ensure the cleanness asepsis.
4. Non-clearance ceramic shearing and cutting homogenizing machine can get the diameter of the material to a precision of 0.5μm.
Main Technical Parameters:
| Type | ZJR-5 | ZJR-10 | ZJR-20 | ZJR-50 | ZJR-100 | ZJR-200 | ZJR-300 | ZJG-500 | ZJG-1000 | |
| Emulsifying phase vessel |
Working capacity (L) | 5 | 10 | 20 | 50 | 100 | 200 | 300 | 500 | 1000 |
| Rotation of spatula (kw) | 0.1 | 0.1 | 0.37 | 0.75 | 1.50 | 2.20 | 2.20 | 3.0 | 7.5 | |
| Rotation of homogenizing unit (rpm) | 50 | 50 | 9-52 | 22-126 | 21-118 (Frequency) |
21-118 (Frequency) |
21-118 (Frequency) |
0-80 | 0-80 | |
| Power of homogenizing unit (kW) | 0.18 | 0.18 | 0.55 | 0.75 | 1.5 | 4.0 | 4.0 | 7.5 | 11 | |
| Rotation of homogenizing unit (rpm) | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | 2900 | 2930 | |
| Dimensions (mm) | ф300 ×300 |
ф350 ×320 |
ф450 ×400 |
ф550 ×480 |
ф650 ×780 |
ф800 ×800 |
ф900 ×900 |
Φ1050 ×1080 |
Φ1350 ×1180 |
|
| Oil-Water phase vessels |
Working capacity (L) | 3 | 6 | 14 | 35 | 70 | 140 | 180 | 300 | 650 |
| Power of spatula (kW) | 0.06 | 0.06 | 0.18 | 0.37 | 0.37 | 0.55 | 0.55 | 1.1 | 2.2 | |
| Rotation of spatula | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
| Dimensions (mm) | ф260 ×290 |
ф300 ×390 |
ф350 ×400 |
ф500 ×400 |
ф610 ×760 |
ф710 ×780 |
ф760 ×980 |
ф950 ×825 |
ф1150
×1025 |
|
| Power of electric heater (kW) | 1.0×6 | 1.0×6 | 1.0×6 | 1.5×6 | 2.5×6 | 3.0×6 | 3.0×6 | 5.0×9 | 7.0×9 | |
| Vacuum pump | Power (kW) | 0.37 | 0.37 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 5.5 | 5.5 |
Boom Industry is a professional manufacturer and supplier of the vacuum homogenizing emulsifying machine, vacuum emulsifying machine in China. With 15 years experience of producing, selling and service in this product, we have exported vacuum homogenizing machines, vacuum emulsifying machine worldwide like the United States, Japan, Russia, Australia, New Zealand, Indonesia, Malaysia, India, Burma, Italy, France, Nigeria, Vietnam, Iran, Syria, Kazakhstan, Poland, Romania etc, more than 80 countries and regions, and gain great reputation among those customers. If you need vacuum homogenizing machine, vacuum emulsifying machines, please contact us.
